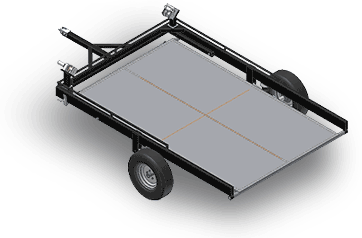

Ultra Lowdor Level Loading Trailer
The Ultra Lowdor Trailer is a drop deck trailer that is designed to allow the main deck to drop flat to the ground to provide level loading of equipment.Level loading eliminates the need for a tilting platform or ramps to ease loading of equipment or other goods. Elimination of the tilting deck and ramps makes this unit the safest trailer for loading and unloading.

The Ultra Lowdor Trailer is a drop deck trailer that is designed to allow the main deck to drop flat to the ground to provide level loading of equipment.Level loading eliminates the need for a tilting platform or ramps to ease loading of equipment or other goods. Elimination of the tilting deck and ramps makes this unit the safest trailer for loading and unloading.

Each unit is manufactured completely of steel and welded together for optimum strength. We use HSS (Hollow Structural Steel) to maximize strength while keeping overall unit weight to a minimum. The deck is a 3/16 solid steel diamond plate design that offers plenty of space as well as being very rugged. High strength air craft wire rope is used on both manual and optional powered winch versions.

The rear pivot assembly is also a solid steel welded design that requires no maintenance. The front of each platform is fitted with safety traveling pins that tie all sections of the frame and deck together to ensure the load is supported by more than the wire rope and winches.

Each unit comes standard with 14 rims and tires, 1 7/8 ball hitch, pivoting tongue jack with wheel, deck welded load tie down hooks, and of coarse all units are completely wired with running, reverse and brake lighting.  The unit was designed and is manufactured in Canada.

The unit was designed and is manufactured in Canada.
